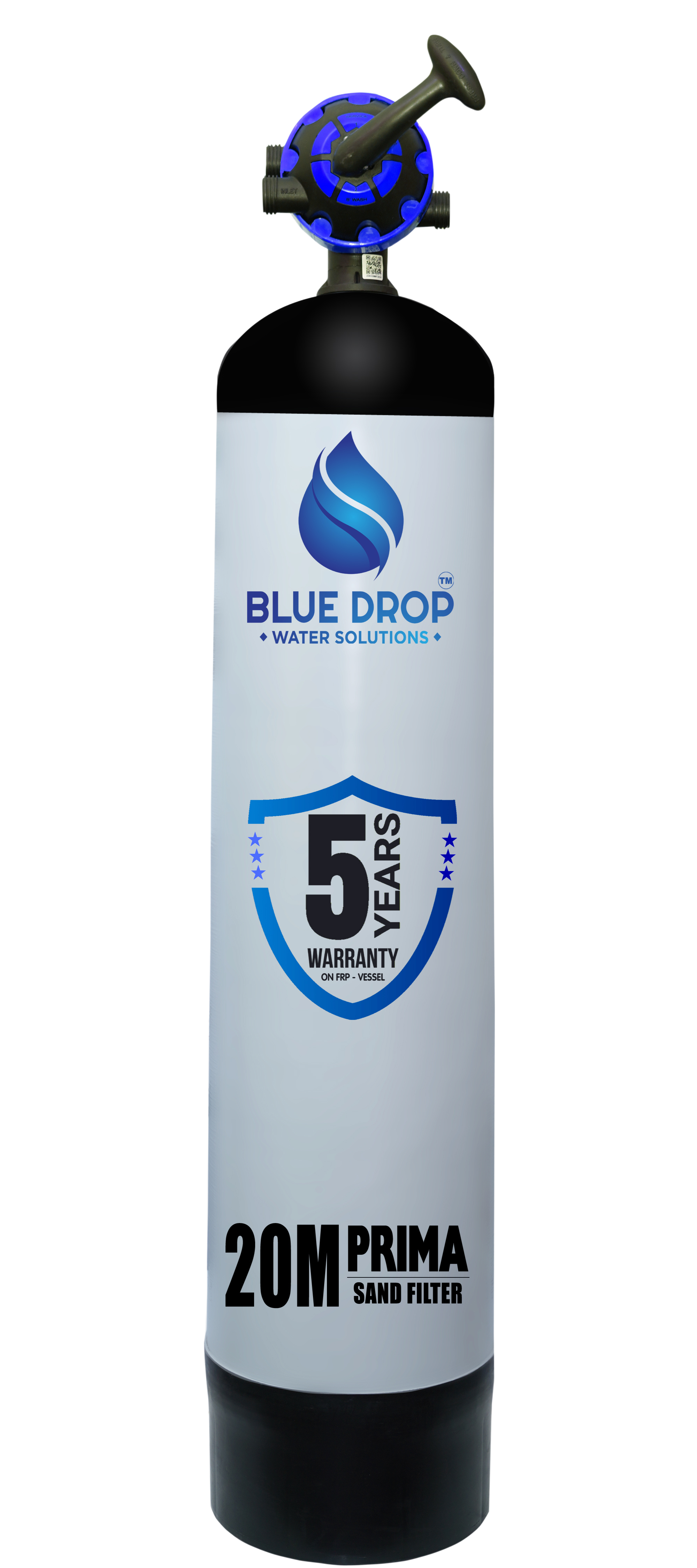

20M Prima
20M Prima
| Specification | Details |
|---|---|
| Vessel Diameter | 30 Inches |
| Vessel Height | 72 Inches |
| Pebbles | 150 Kgs |
| Core | 150 |
| Silex | 150 |
| Activation Medium | Back Wash |
| Multiport Valve | 50NB Side Mount |
| Max Flow Rate (*1000 Ltrs/Hr) | 20 |
| Maximum Operating Pressure | 3.5 Bar |

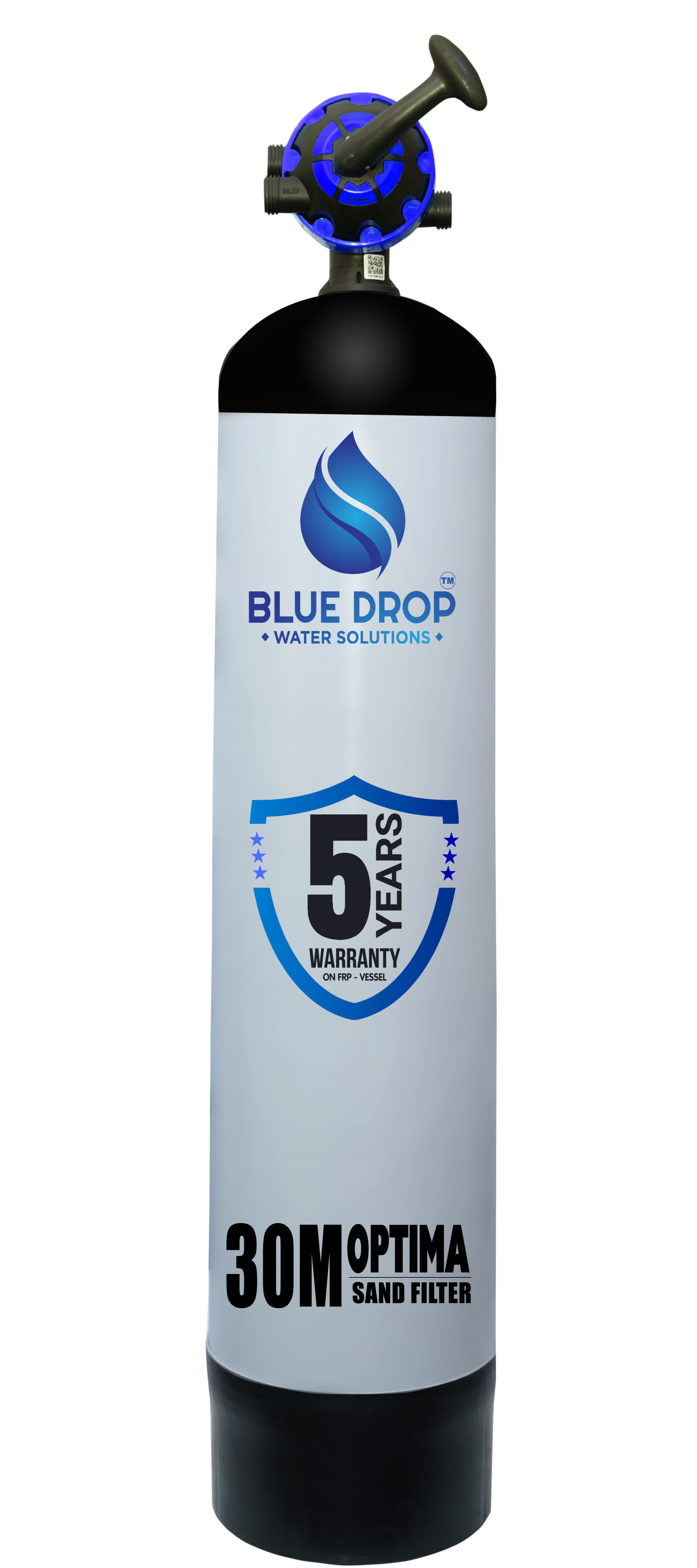

30M Optima
30M Optima
| Specification | Details |
|---|---|
| Price | 38,400/- |
| Vessel Size | 13*54 |
| MPV Size and Mounting | 25NB Top |
| Silex | 25 |
| Core | 25 |
| Fine | 25 |
| Maximum Flow (*1000 Ltrs/Hr) | 3 |
| MPV Type | Manual |
| Max Operating Pressure | 3.5 BAR |

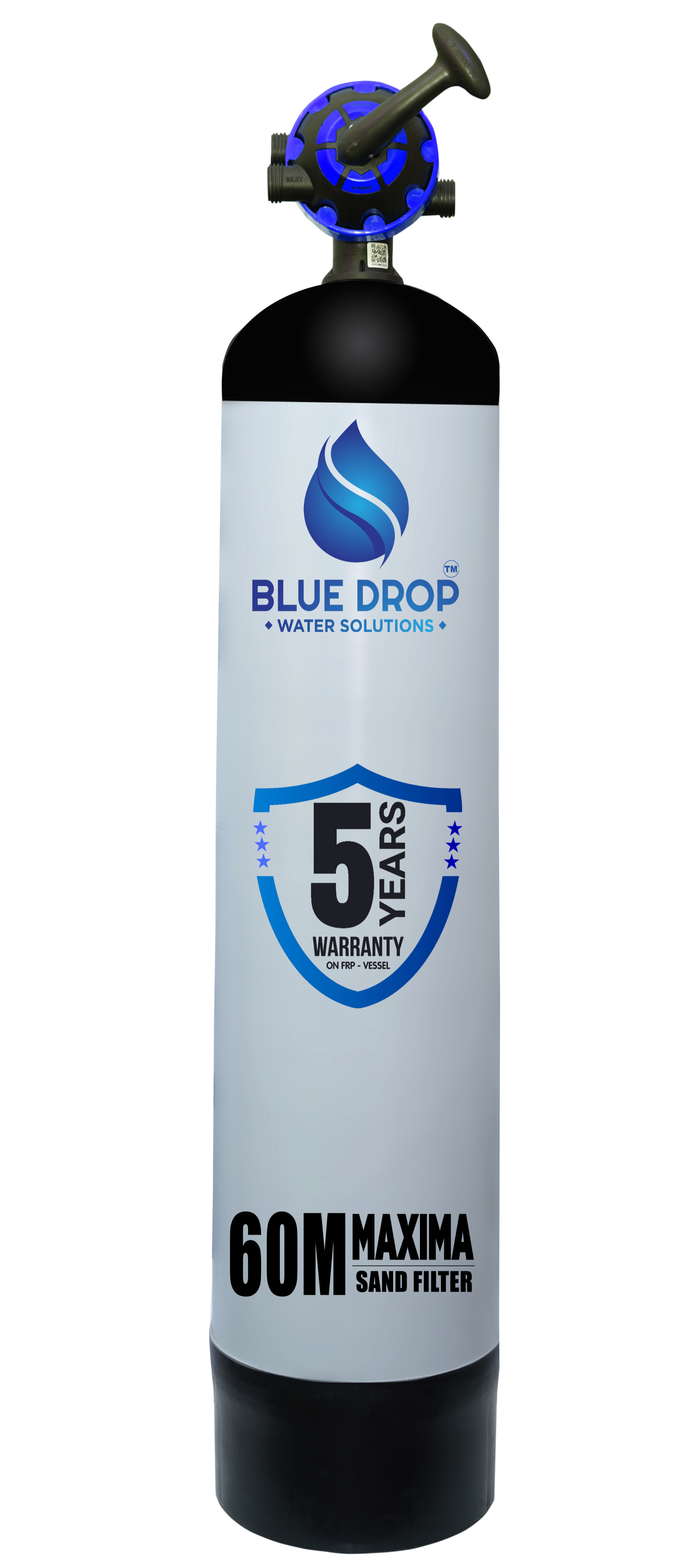

60M Maxima
60M Maxima
| Specification | Details |
|---|---|
| Price | 53,500/- |
| Vessel Size | 16*65 |
| MPV Size and Mounting | 40NB Side |
| Silex | 50 |
| Core | 50 |
| Fine | 25 |
| Maximum Flow (*1000 Ltrs/Hr) | 6 |
| MPV Type | Manual |
| Max Operating Pressure | 3.5 BAR |

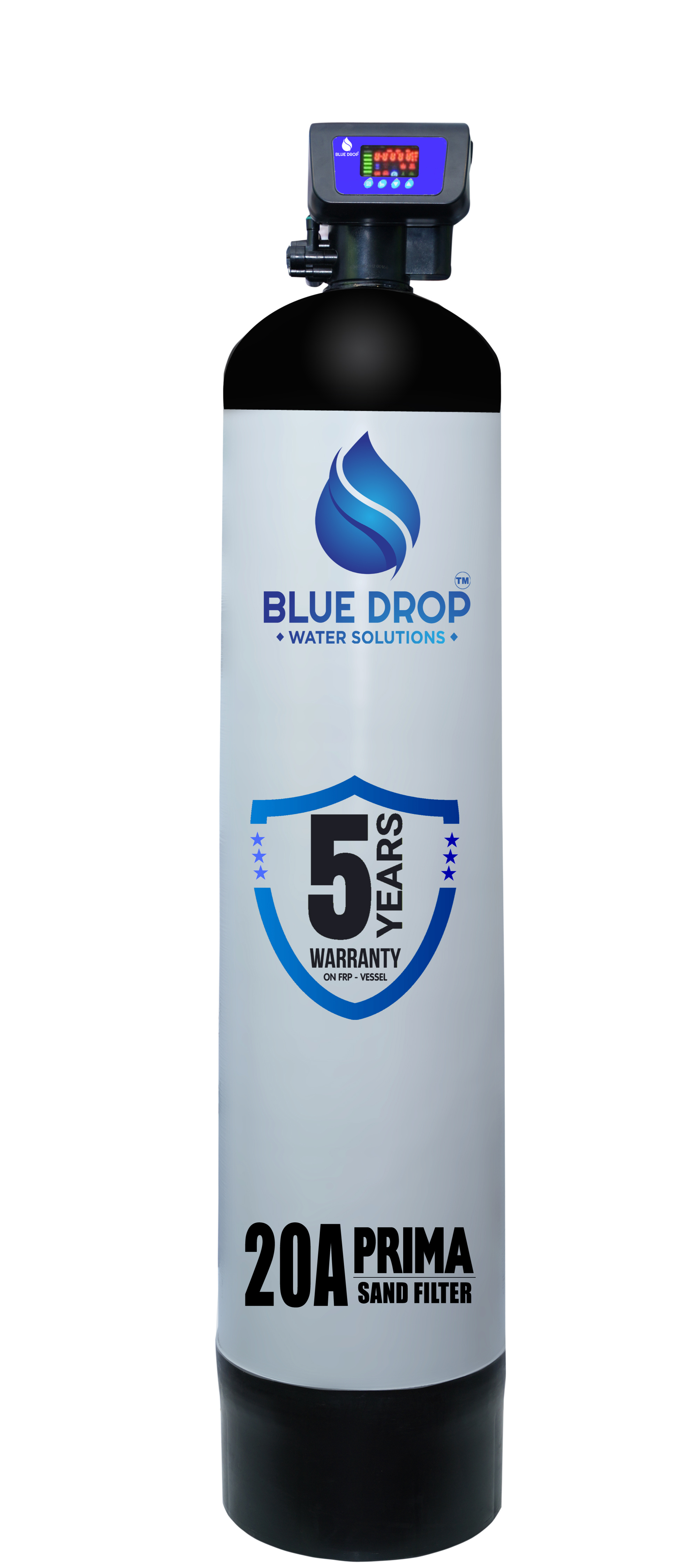

20A Prima
20A Prima
| Specification | Details |
|---|---|
| Price | 60,900/- |
| Vessel Size | 13*54 |
| MPV Size and Mounting | 25NB Top |
| Silex | 25 |
| Core | 25 |
| Fine | 25 |
| Maximum Flow (*1000 Ltrs/Hr) | 3 |
| MPV Type | Automatic |
| Max Operating Pressure | 3.5 BAR |

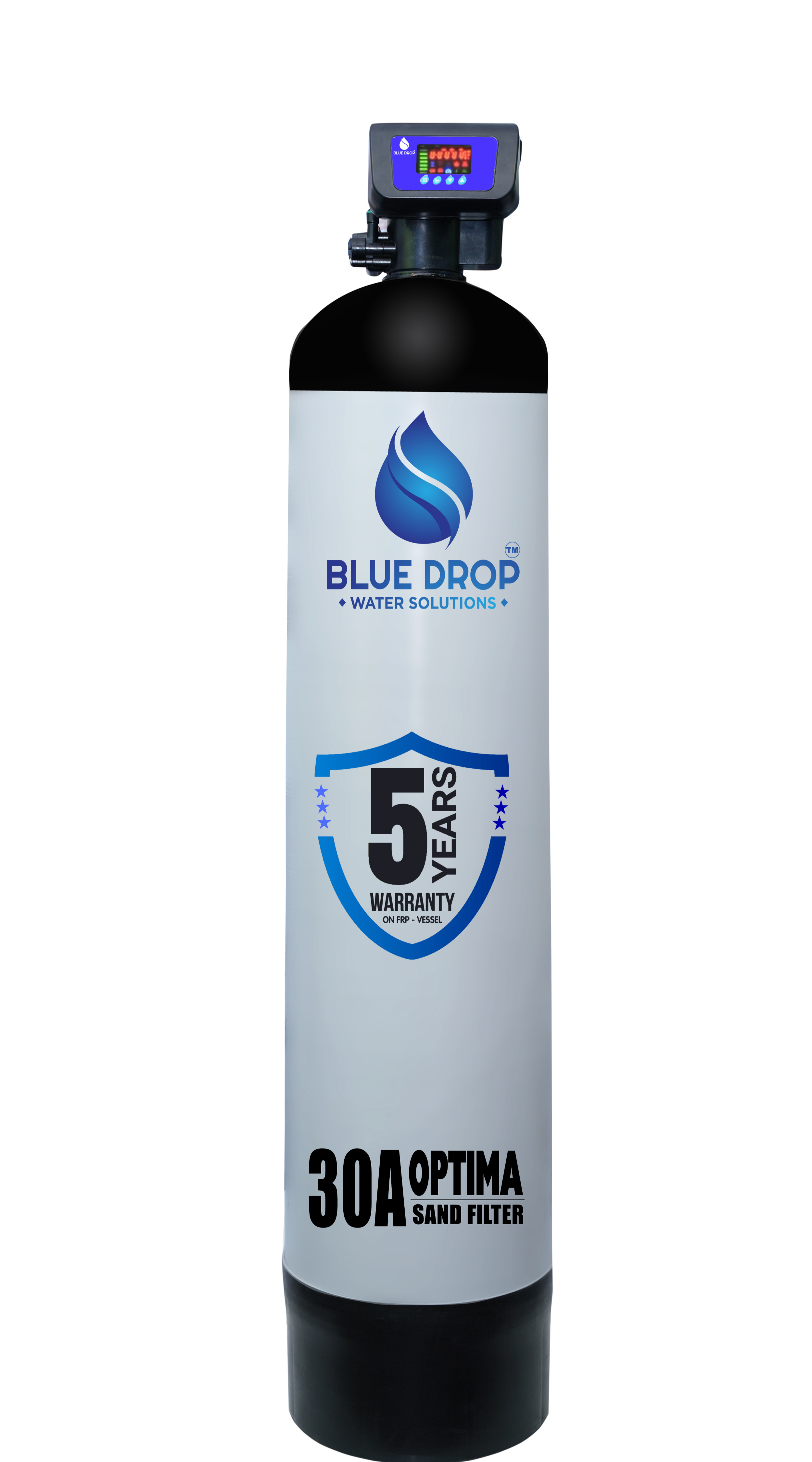

30A Optima
30A Optima
| Specification | Details |
|---|---|
| Price | 60,900/- |
| Vessel Size | 13*54 |
| MPV Size and Mounting | 25NB Top |
| Silex | 25 |
| Core | 25 |
| Fine | 25 |
| Maximum Flow (*1000 Ltrs/Hr) | 3 |
| MPV Type | Automatic |
| Max Operating Pressure | 3.5 BAR |

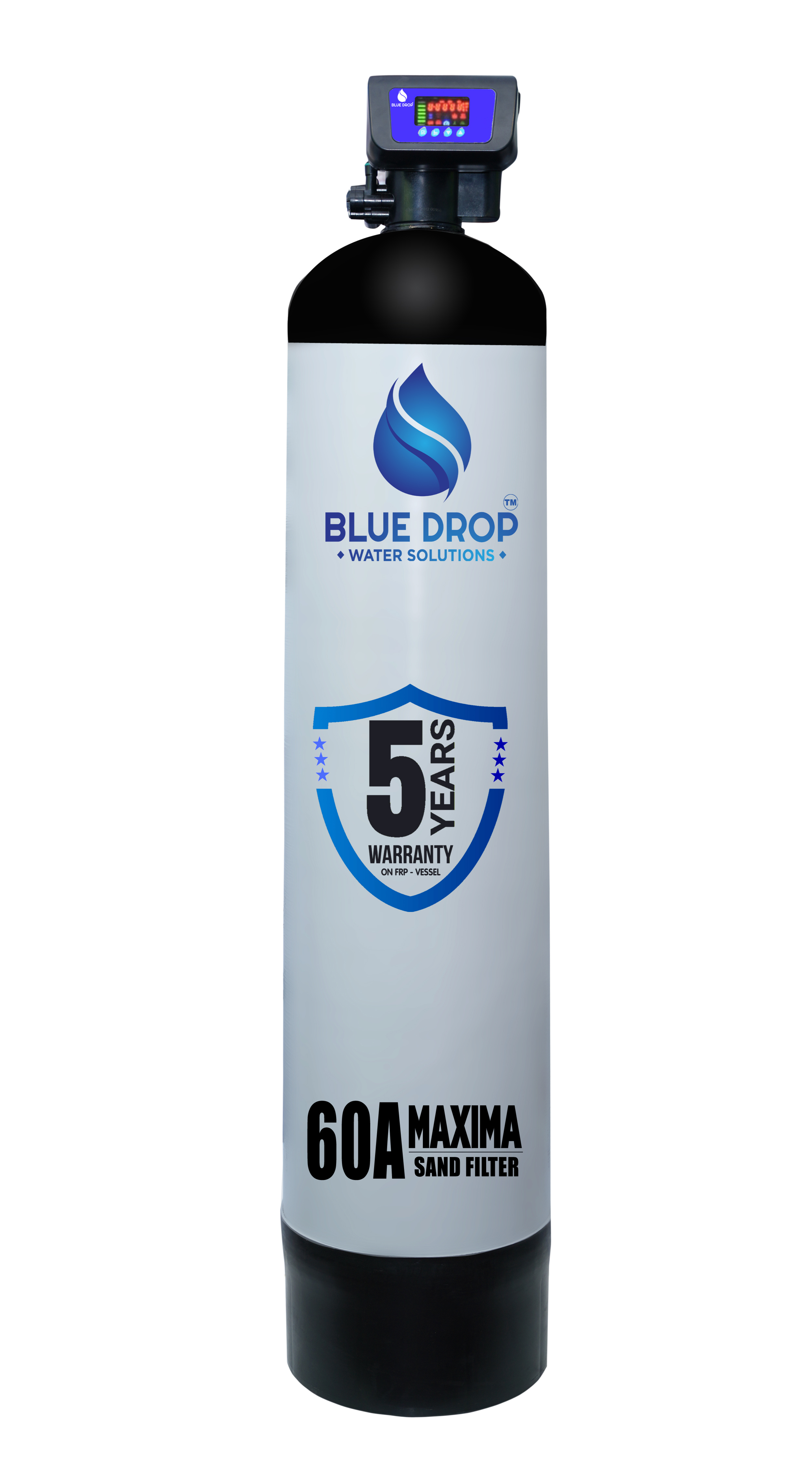

60A Maxima
60A Maxima
| Specification | Details |
|---|---|
| Price | 89,000/- |
| Vessel Size | 14*65 |
| MPV Size and Mounting | 40NB Top |
| Silex | 50 |
| Core | 50 |
| Fine | 25 |
| Maximum Flow (*1000 Ltrs/Hr) | 6 |
| MPV Type | Automatic |
| Max Operating Pressure | 3.5 BAR |
How we Work?
Sand filters are commonly used in various applications for filtering and purifying liquids, primarily in water treatment processes. Here’s an overview of their uses:
Durable
They have a long service life and are relatively low maintenance.
Cost-Effective
They are often more affordable compared to other filtration technologies.
Filters
The Importance of Sand Filters
A sand filter is essential for maintaining clean and clear water by removing sediments, dirt, and other particulate matter from the water supply. It functions as a critical component in both residential water filtration systems and irrigation setups, ensuring that water used for drinking, cooking, and irrigation is free from impurities that could affect health, equipment performance, and overall efficiency. By trapping particles as water passes through a bed of sand, these filters prevent clogs in subsequent filtration stages and irrigation components, thereby enhancing the quality of water and extending the life of other equipment. Regular use of sand filters not only improves the clarity and taste of water but also reduces maintenance needs and operational costs.
Benefits of Sand Filters:
- Effective Sediment Removal: Efficiently removes particles and debris, improving water clarity.
- Protects Equipment: Prevents clogging and damage to plumbing and irrigation systems.
- Cost-Effective: Offers a low-maintenance and affordable solution for water filtration.
- Improves Water Quality: Enhances the taste and safety of water by eliminating sediments.
- Long-Lasting: Provides durable and reliable filtration with minimal upkeep.
- Versatile Use: Suitable for both household water systems and irrigation setups.
How It Works ?
Sand filters operate through a straightforward yet effective process of water filtration. Water flows through a bed of sand, where particles and debris are trapped by the granular material.
As the water percolates downward through the sand layers, larger particles are retained on the surface, while smaller particles are captured within the sand bed.
The clean water then exits the filter from the bottom, ready for use. To maintain optimal performance, sand filters are periodically cleaned through a process called backwashing, where water is directed in the reverse flow to flush out accumulated contaminants.
This simple yet efficient mechanism makes sand filters a reliable choice for improving water quality in various applications, including municipal water systems, swimming pools, and irrigation setups.
